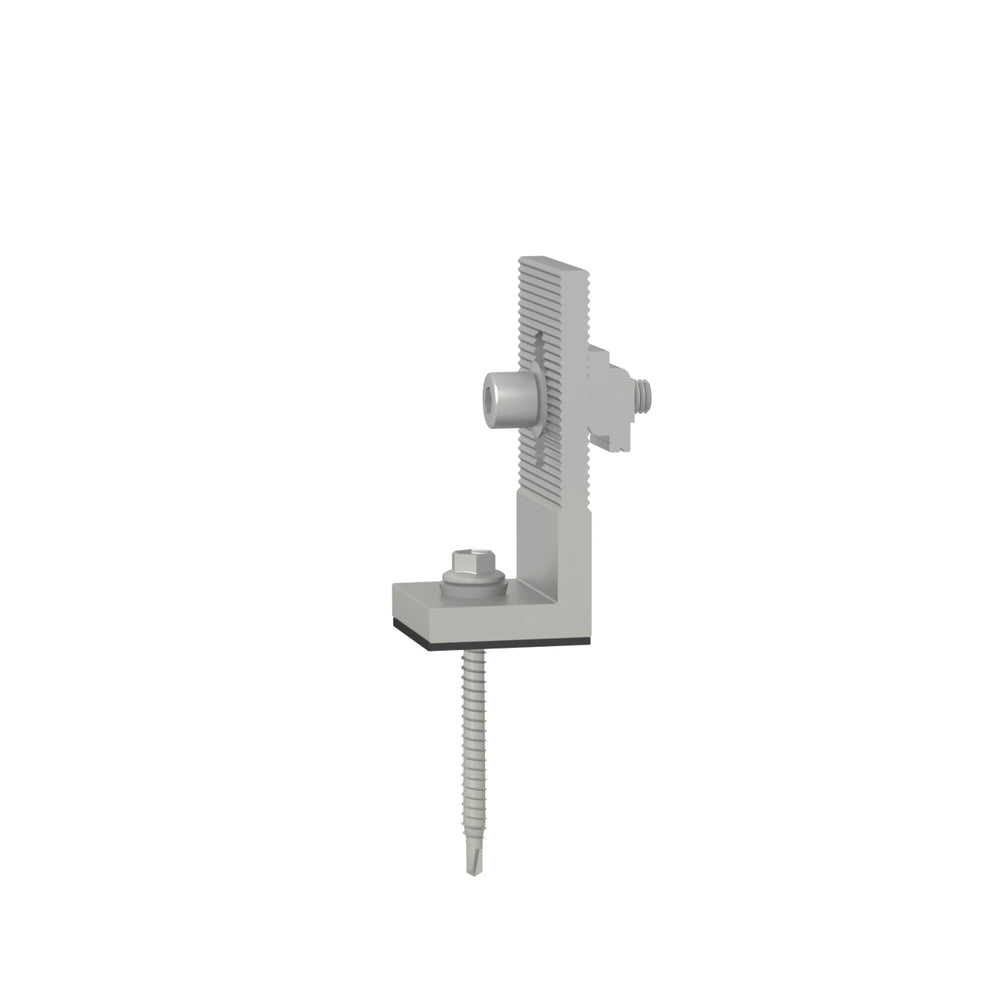

PV-ezRack SolarRoof, Tin Interface with Z Module, Buildex Screw 6.3x70 Climaseal 5 (C5)
SKU ER-I-05/C5
Call for availability
- Description
The Clenergy PV-ezRack ER-I-05/C5 is a tin roof interface supplied with a Climaseal 5 rated Buildex screw. It connects compatible SolarRoof rails to metal or timber purlins.
Download the Clenergy ER-I-05/C5 datasheet
Key Features
- Climaseal 5 roof fastener for enhanced corrosion protection
- Includes a pre-fitted 38 × 38 × 2 mm rubber pad
- Anodised Z-Module connection for compatible PV-ezRack rail
- Suitable for metal or timber purlins where specified by Clenergy
Technical Specifications
| Part number | ER-I-05/C5 |
| Product type | Tin roof interface with C5 rated screw |
| Rail connection | Anodised Z-Module |
| Roof fastener | Buildex 14-11 × 70 mm Hex Head Zips screw, Climaseal 5 |
| Rubber pad | 38 × 38 × 2 mm |
| Included washers | M8 × 18 lock washer and 8 mm spring washer |
