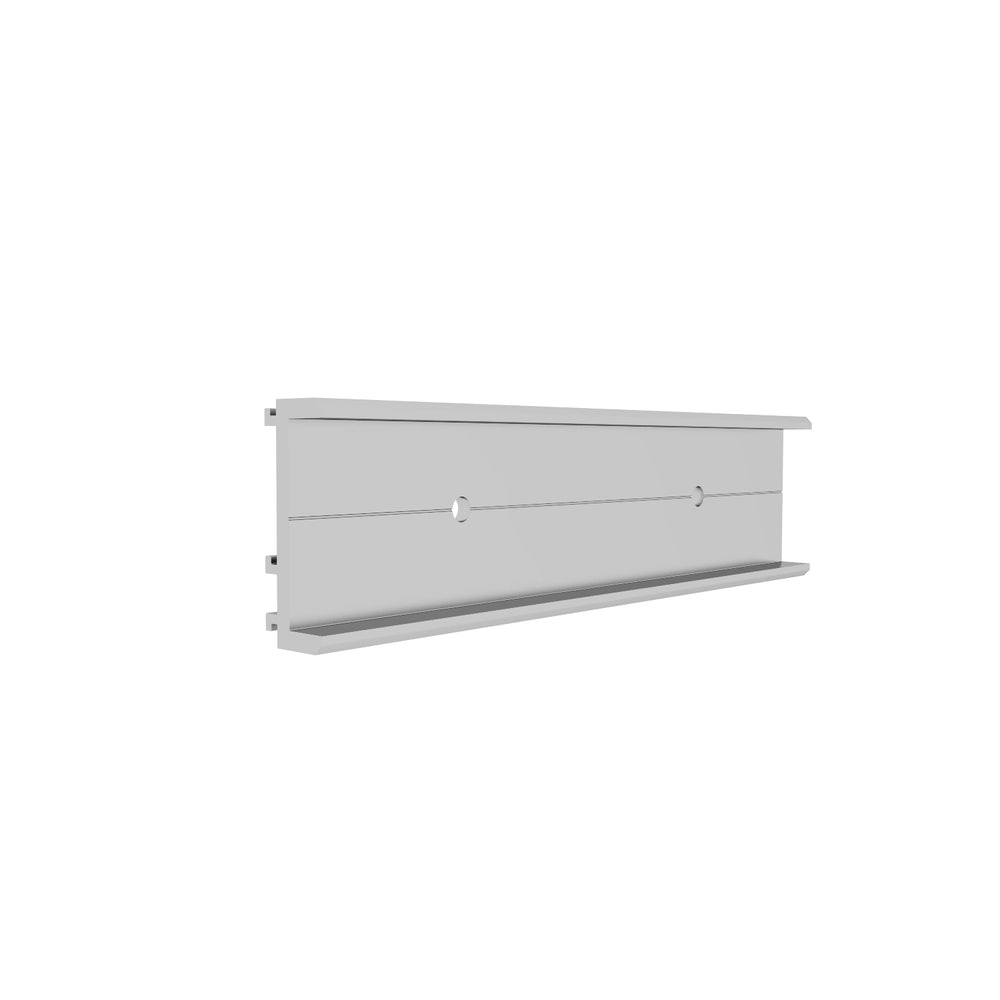

PV-ezRack Splice for ECO-Rail
PV-ezRack Splice for ECO-Rail

PV-ezRack Splice for ECO-Rail

SKU ER-SP-ECO
In stock: 100+
  • Description
  • Key Features
  • Technical Specifications

The ER-SP-ECO splice connector joins two Clenergy ECO (or TUNNAL) rails quickly and reliably—no cutting needed. At 200 mm long, made from AL6005-T5 aluminium with stainless steel fittings, it preserves rail strength and uniformity while allowing custom rail lengths to suit any panel layout. Certified under the SolarRoof™ system, it’s built for high performance and durability

Pack 24
Carton 96

  • Splice/joiner for ECO (and compatible with TUNNAL) rails to extend rail runs seamlessly.

  • Standard 200 mm length ensures consistent alignment and minimal joins.

  • Includes hexagon socket head M8 × 12 mm screw for secure and precise fastening.

  • Built with aluminium alloy (AL6005-T5) and stainless steel (SUS304) to resist weathering and corrosion.

  • Part of the Clenergy SolarRoof™ & ECO series, with TUV certification and a 10-year product warranty.

Specification Details
Product Type Splice / Joiner for ECO Rail
Length 200 mm
Fastener Type Hexagon socket head screw, M8 × 12 mm
Material AL6005-T5 aluminium body; SUS304 stainless hardware
Compatible Rails ECO, TUNNAL (also works with Elite under low torque)
Finish / Surface Protection Aluminium natural / standard finish
