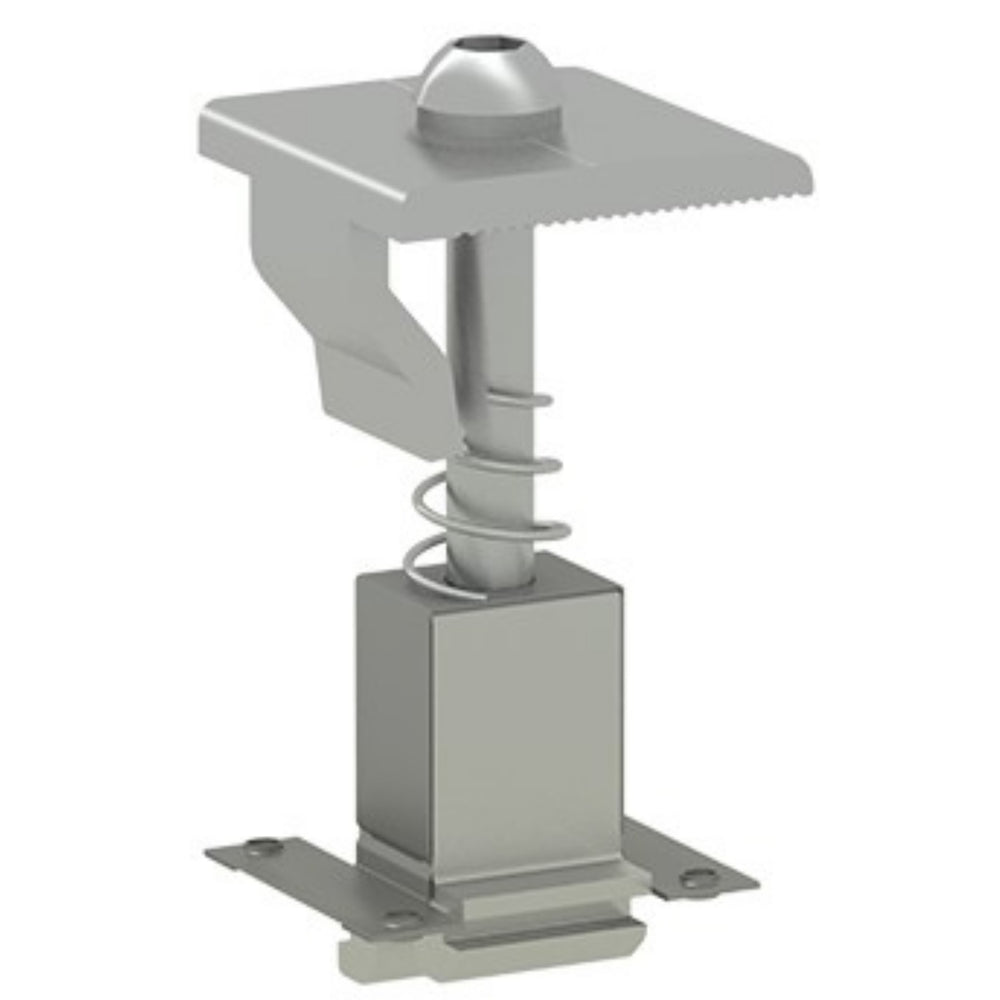

PV-ezRack, Universal Clamp for Frame Height 30-46mm with Grounding Clip
SKU C-U/30/46-G
Call for availability
- Description
- Key Features
- Technical Specifications
The Clenergy PV-ezRack C-U/30/46-G is a universal clamp with grounding clip for framed PV modules with frame heights from 30 to 46 mm. It can be used as either an end clamp or an inter clamp.
- 30–46 mm frame compatibility: Designed for framed PV modules within this frame-height range.
- Integrated grounding clip: The -G version includes a SUS304 grounding clip.
- End or inter clamp use: The same clamp can be used in either position.
- Silver anodised finish: Anodised to no less than 10 μm.
| Specification | Details |
|---|---|
| Part Number | C-U/30/46-G |
| PV Module Type | Framed PV modules |
| Module Frame Height | 30–46 mm |
| Required Clearance | 20 mm on each side of the rail; 20 mm between PV modules |
| Recommended Torque | End clamp: 13–14 N·m; Inter clamp: 18–20 N·m |
| Weight | 0.072 kg |
| Material | Main parts: AL6005-T5; Fasteners and grounding clip: SUS304 |
| Colour / Finish | Silver, anodised no less than 10 μm |
| Packaging | 60 units per pack; 4 packs (240 units) per carton |
| Standard | AS/NZS 1170.2:2011 |
