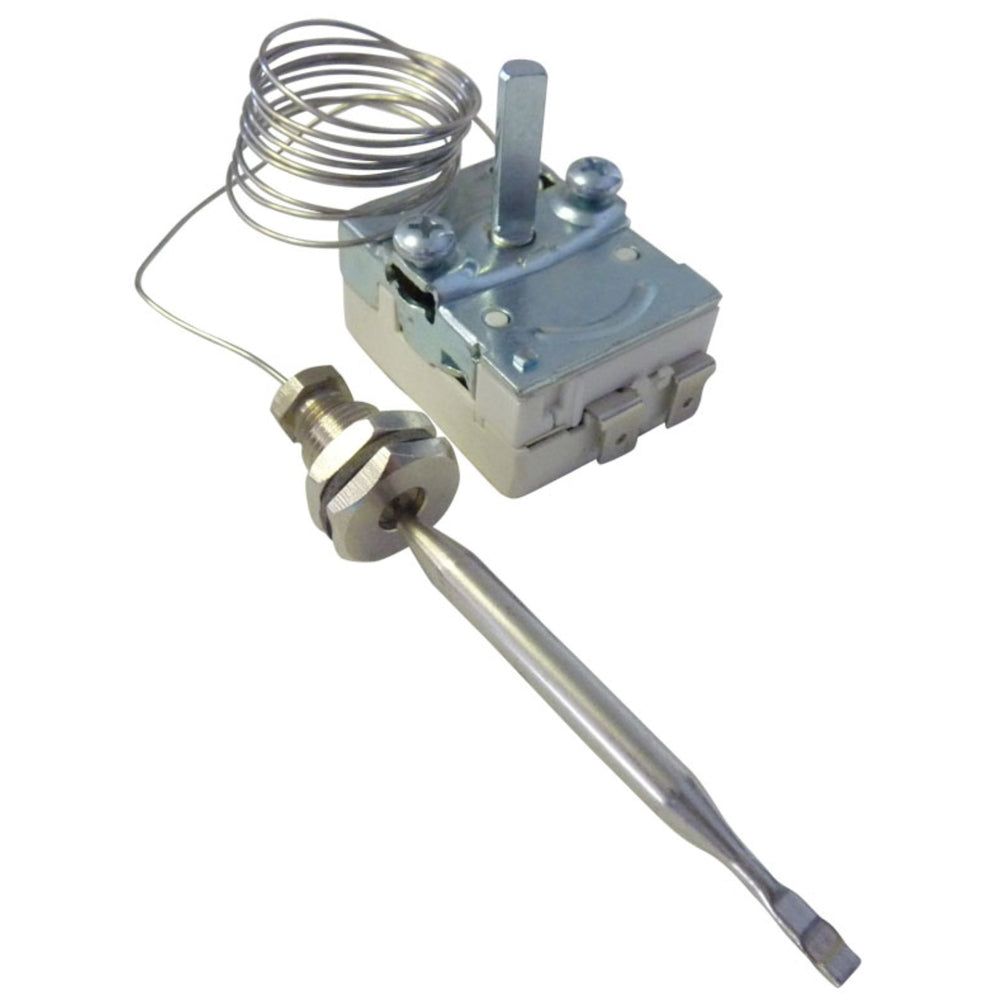

Deep Fryer Capillary 1000mm Thermostat 50-200C
Deep Fryer Capillary 1000mm Thermostat 50-200C

Deep Fryer Capillary 1000mm Thermostat 50-200C

SKU RC4
In stock: 3
  • Description
  • Key Features
  • Model Info

The RC4 is a high-precision capillary thermostat with a range of 50 °C to 200 °C, commonly used in commercial deep fryers and similar cooking appliances. It operates on a single-pole contact, with “break on temperature rise” action and no auxiliary switching. This means it cuts power when the temperature exceeds the set point.

  • Temperature range: 50 °C to 200 °C

  • Single contact (break on rise), no auxiliary switching

  • Built-in gland seal (M9 stuffing gland) for protection from ingress

  • Current rating: 16 A @ 230 V AC

  • Shaft diameter: 6.0 mm, 22 mm length, flat at 12 o’clock position

  • Capillary length: 1,000 mm (stainless steel)

  • Bulb diameter: 6.0 mm, bulb length: 77 mm

Suitable for deep fryers applications

55.13034.040 NT-243 NT243 55.13034.040
