Solar Terrace II 5 Post Ground Mount Kit 20deg 18 Panel
SKU K-ST2-18/5CP/20/3.7
Call for availability
- Description
- Key Features
- Technical Specifications

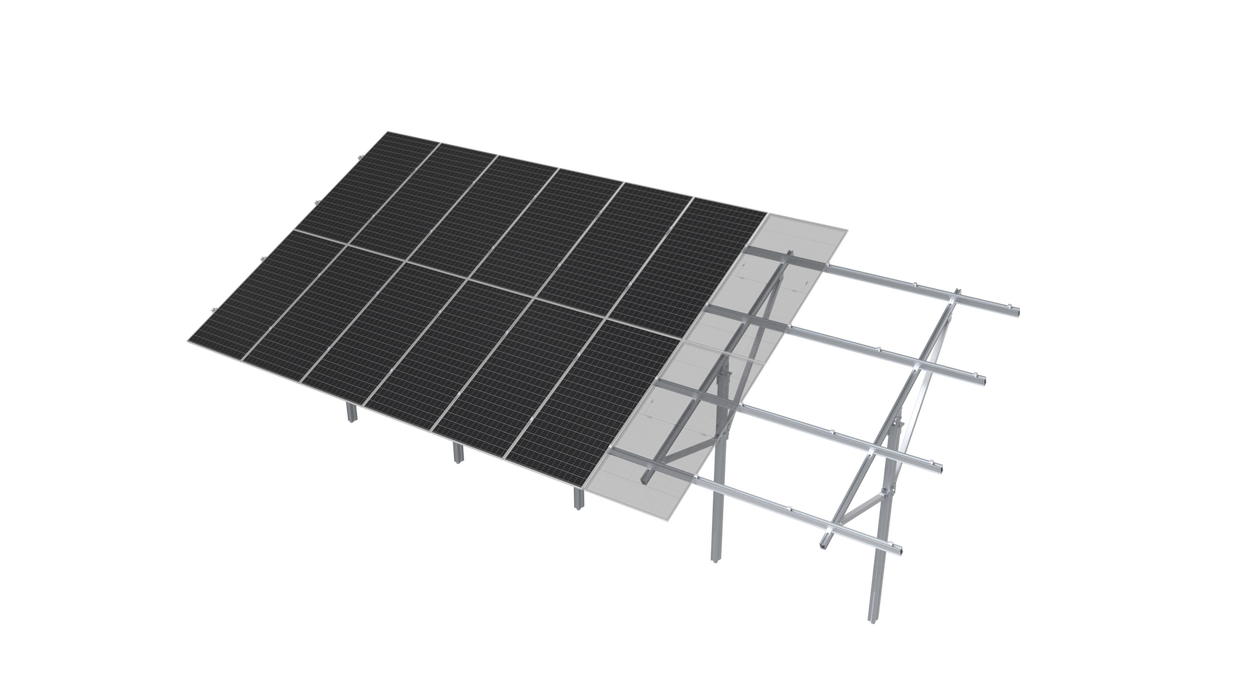

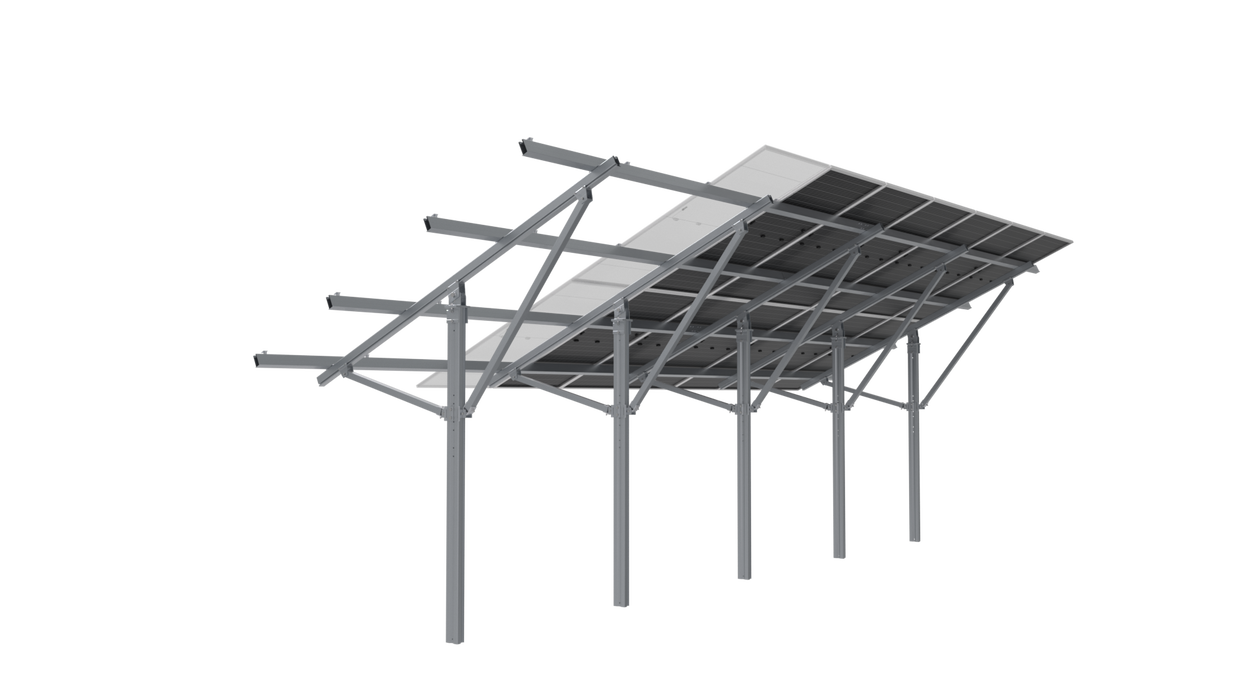

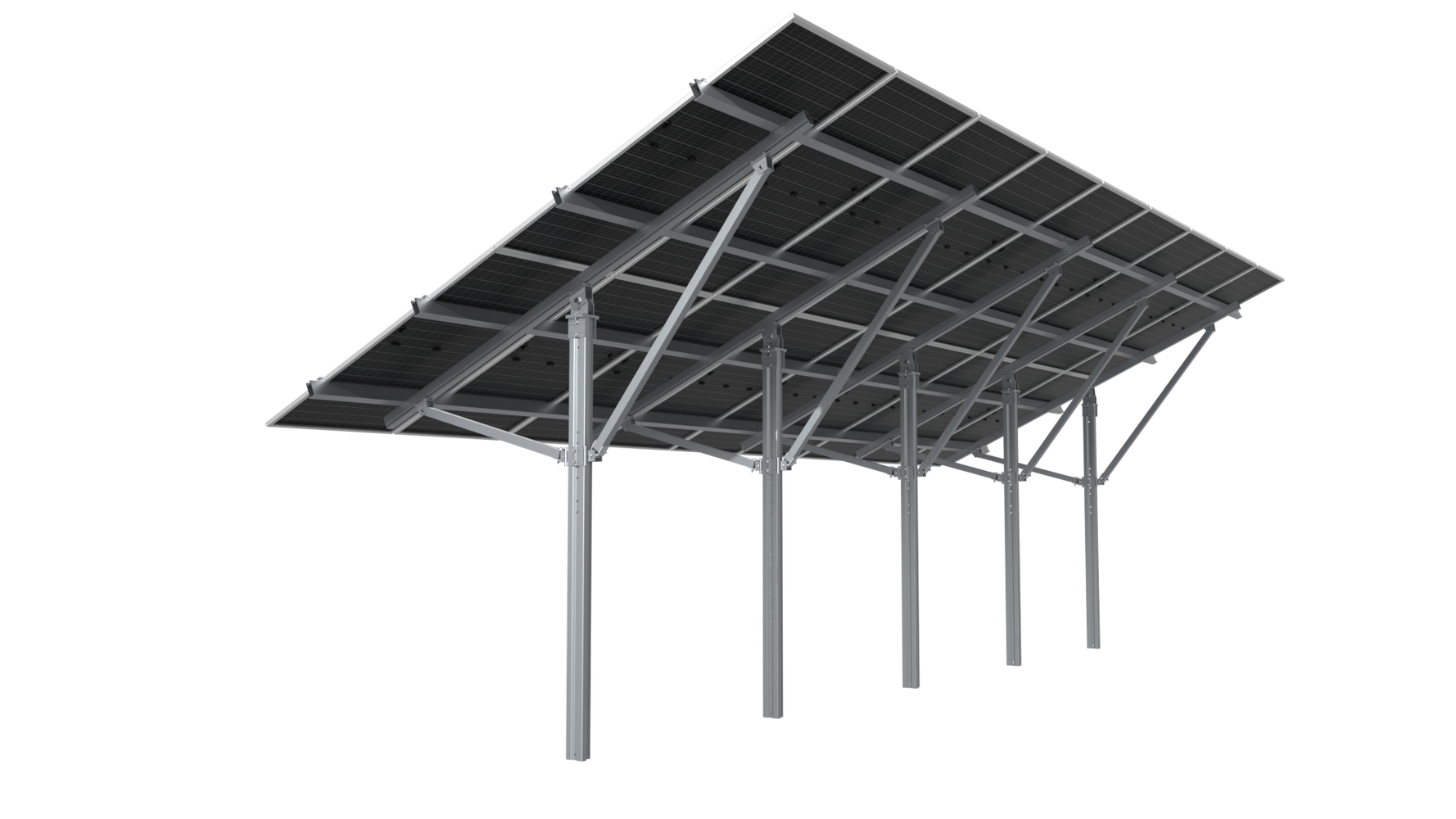

The Clenergy PV-ezRack SolarTerrace II-A ground mount kit is configured for an 18-panel array at a 20° tilt using a five-post layout. SolarTerrace II-A is Clenergy’s pre-assembled ground mount system with full earthing functionality, designed to provide a practical fixed-tilt mounting solution for ground-mounted PV installations.
Final post spacing, embedment depth, foundation requirements and site suitability must be confirmed against the applicable Clenergy engineering documentation for the installation location.
- 18-panel configuration: Kit configured for an 18-panel ground mount array.
- 20° fixed tilt: Configured for a 20° module tilt angle.
- Five-post layout: Five-post ground mount configuration.
- SolarTerrace II-A system: Uses Clenergy’s pre-assembled ground mount platform.
- Full earthing function: SolarTerrace II-A provides earthing continuity through the mounting structure when installed in accordance with Clenergy requirements.
| Specification | Details |
|---|---|
| Part Number | K-ST2-18/5CP/20/3.7 |
| System | Clenergy PV-ezRack SolarTerrace II-A |
| Array Configuration | 18 panels |
| Tilt Angle | 20° |
| Post Configuration | 5 posts |
| Mounting Type | Ground mount |
