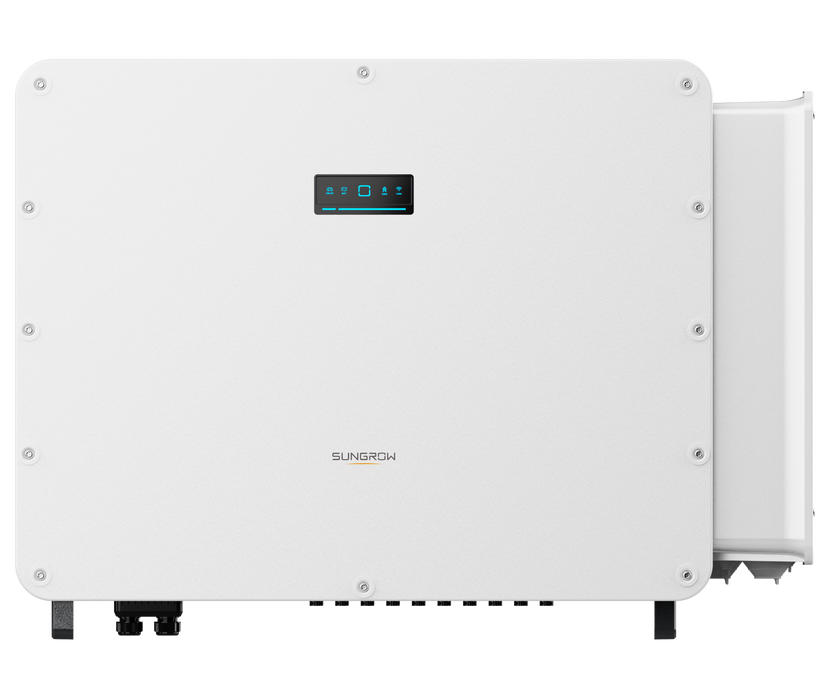

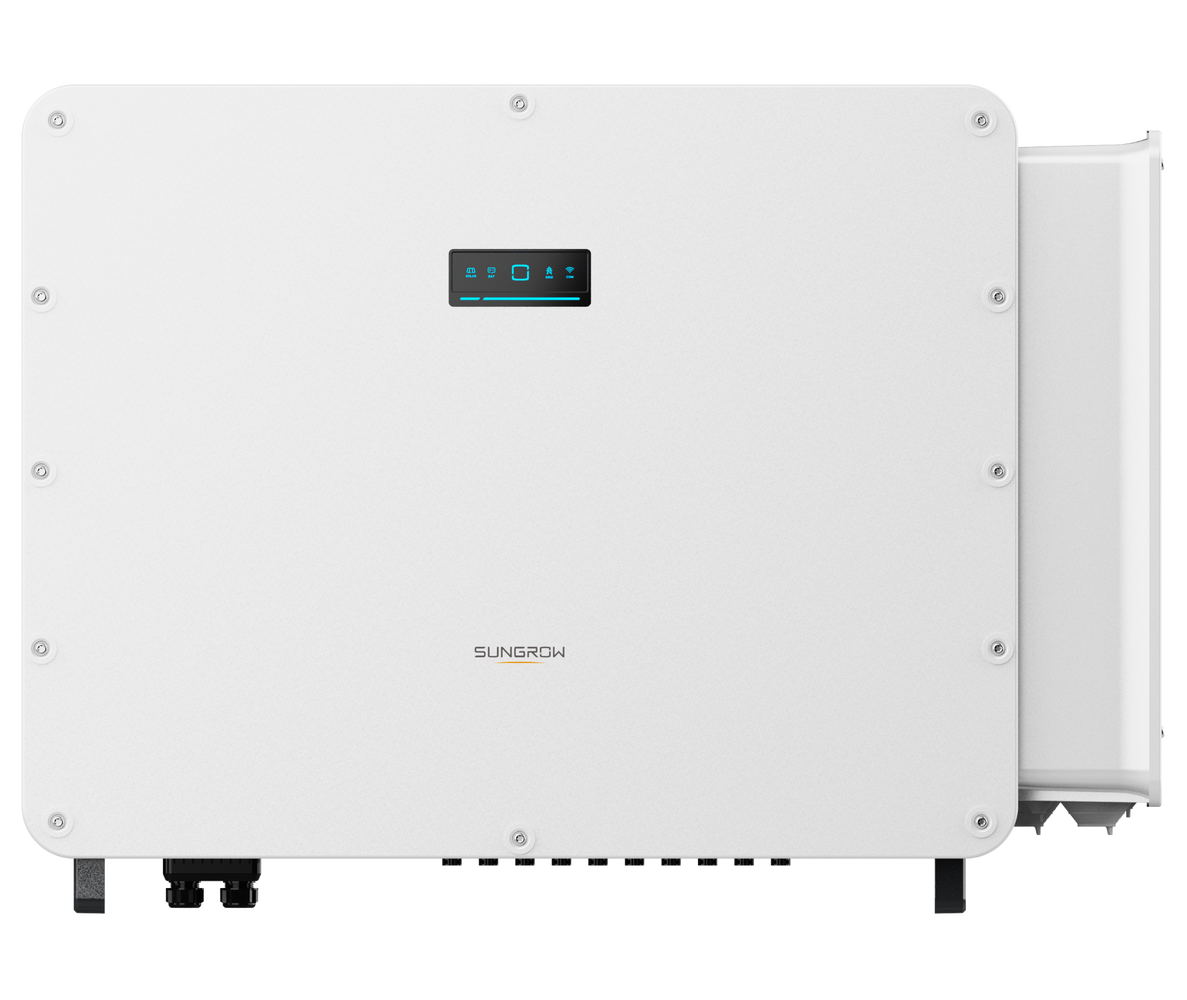

Sungrow 110kW Multi-MPPT C&I Hybrid Inverter 3PH IP66
SKU SH110CX
Call for availability
- Description
- Key Features
- Technical Specifications
The Sungrow SH110CX is a high-performance commercial and industrial hybrid inverter designed to deliver maximum energy yield, advanced battery integration, and full energy independence. With support for large PV arrays, high battery throughput, and intelligent energy management, it enables efficient solar generation, storage, and consumption in a single system. Built for demanding environments, the SH110CX combines robust protection, flexible application capability, and fast backup response for reliable long-term performance.
- 110kW hybrid inverter – ideal for commercial and industrial energy storage systems
- Up to 200% PV oversizing – maximise solar generation potential
- 10 MPPTs with 40A input – optimised for high-power PV modules
- Up to 200A charge/discharge current – high-performance battery integration
- ≤10 ms UPS-level switching – seamless backup during outages
- 100% three-phase unbalance output – flexible load support
- Smart trading ready – supports TOU, dynamic pricing, and VPP participation
- AFCI 3.0 & advanced fault protection – enhanced system safety
- IP66 & C5 protection – reliable operation in harsh environments
| Specification | Value |
|---|---|
| Model | SH110CX |
| Rated AC Output Power | 110 kW |
| Max. AC Output Apparent Power | 110 kVA |
| Max. AC Output Current | 158.8 A |
| Phase Configuration | Three-phase |
| Max. PV Input Power | 220 kWp |
| Max. DC Input Voltage | 1100 V |
| MPPT Voltage Range | 180 V – 1000 V |
| Number of MPPTs | 10 |
| PV Input Current | 40 A × 10 |
| Max. DC Short-Circuit Current | 50 A × 10 |
| Battery Type | Lithium-ion |
| Battery Voltage Range | 129 V – 880 V |
| Max. Charge / Discharge Current | 200 A / 200 A |
| Max. Charge / Discharge Power | 110 kW |
| Max. Efficiency | 98.5% |
| European Efficiency | 98.2% |
| Backup Switch Time | ≤ 10 ms |
| Protection Rating | IP66 |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | -30°C to +60°C |
| Max. Operating Altitude | 3000 m |
| Dimensions (W × H × D) | 1095 × 795 × 360 mm |
| Weight | ≤ 128 kg |
| Communication | CAN / RS485 / 4G / WLAN / Ethernet |
| Compliance | IEC 62109-1/2, IEC 62477-1, AS/NZS 4777.2:2020 |
| Mounting Method | Wall-mounted |
