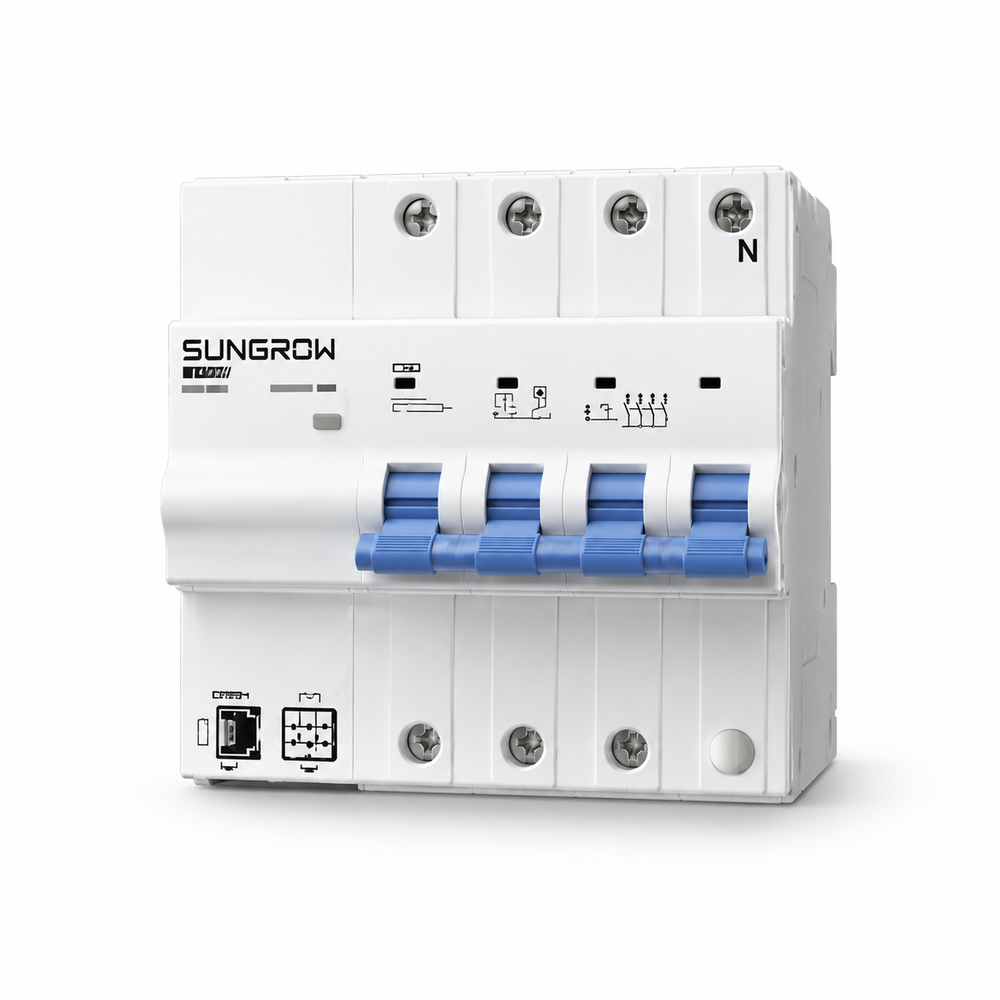

Sungrow Energy Bridge Three Phase (3ph) 80A
SKU EB80T
In stock: 1
- Description
- Key Features
- Technical Specifications
The Sungrow EB80T EnergyBridge provides automatic switching between grid supply and battery backup for compatible three-phase Sungrow hybrid systems. It supports whole-home backup and suitable existing solar system upgrades using a single hybrid inverter.
- Combines grid switching, circuit protection and energy metering.
- DIN-rail installation inside a suitable switchboard.
- Built-in current sensing and a bypass function.
| Specification | Details |
|---|---|
| Model | EB80T |
| Supply | three-phase, 400 / 415 V AC |
| Rated current | 80 A; temperature derating applies above 30°C |
| Backup switching | ≤10 ms |
| Breaker poles | 6P |
| Communication | RS485 |
| Dimensions (W × H × D) | 108 × 105 × 79 mm |
| Weight | 780 g |
| Protection | IP20 |
