SUNGROW - G3 SINGLE-PHASE 5KW Triple MPPT, BUILT-IN DC ISOLATOR
- Description
- Key Features
- Technical Specifications

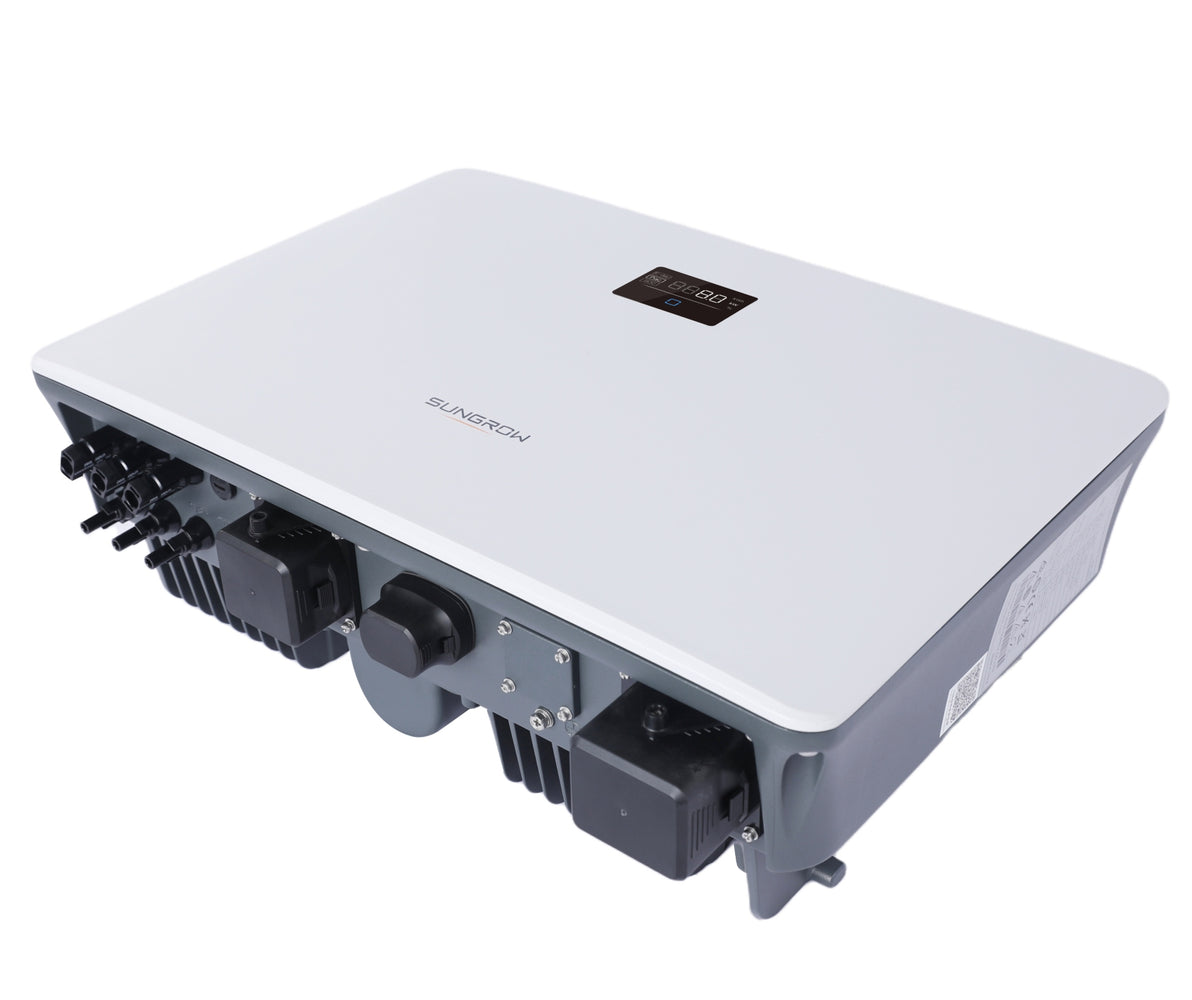

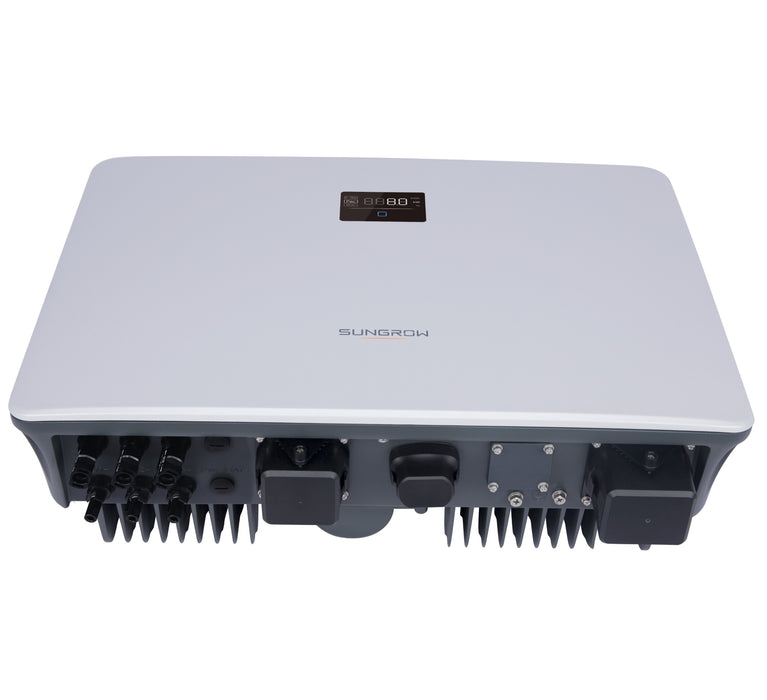

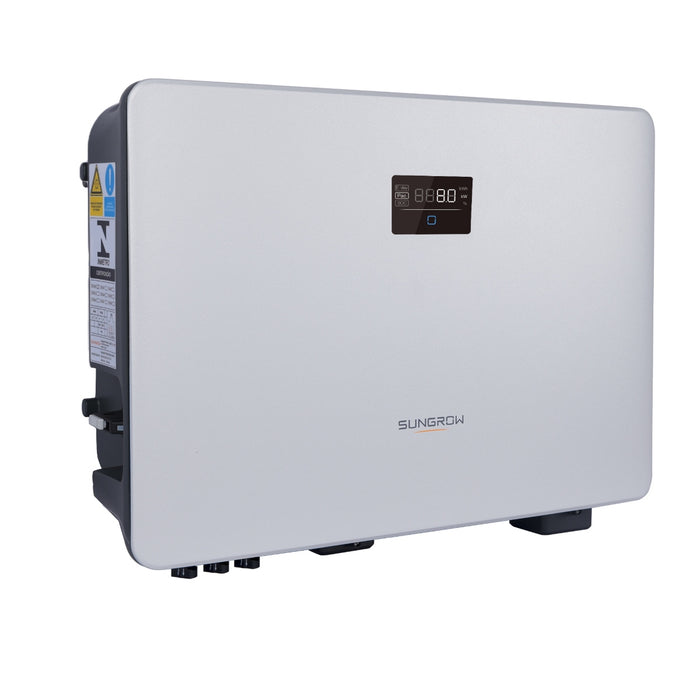

The Sungrow SG5.0RS-ADA (G3) is a high-efficiency single-phase string inverter designed for residential solar installations requiring flexibility, safety, and fast commissioning. With multiple MPPTs and a wide operating voltage range, it optimises energy yield from modern high-power and bifacial PV modules. Integrated safety protection, compact design, and smart monitoring via iSolarCloud make the SG5.0RS-ADA (G3) a reliable and installer-friendly solution for long-term performance.
Included in box: plastic plate + Wireless Meter WiMeter-S +CT + WiNet-S
-
5.0 kW single-phase output for residential PV systems
-
Three independent MPPTs for flexible array design and improved yield
-
High efficiency with European efficiency up to 96.9%
-
Integrated AFCI for enhanced fire safety protection
-
Built-in Type II DC & AC surge protection
-
Plug-and-play installation with compact, lightweight design
-
Real-time monitoring via iSolarCloud with IV curve scan and diagnosis
-
IP65 enclosure with C5 corrosion protection for durable outdoor installation
| Specification | Value |
|---|---|
| Model | SG5.0RS-ADA (G3) |
| Rated AC Output Power | 5,000 W |
| Max. AC Output Apparent Power | 5,000 VA |
| Phase Configuration | Single-phase |
| Max. DC Input Voltage | 600 V |
| MPPT Operating Voltage Range | 40 – 560 V DC |
| Number of MPPTs | 3 |
| Max. PV Input Current | 48 A (16 A × 3) |
| Max. DC Short-Circuit Current | 60 A (20 A × 3) |
| European Efficiency | 96.9% |
| Communication | Ethernet / WLAN / RS485 / DI |
| Protection Rating | IP65 |
| Corrosion Protection | C5 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 490 × 340 × 170 mm |
| Weight | 19 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC 62109-1/2, AS/NZS 4777.2:2020 |
