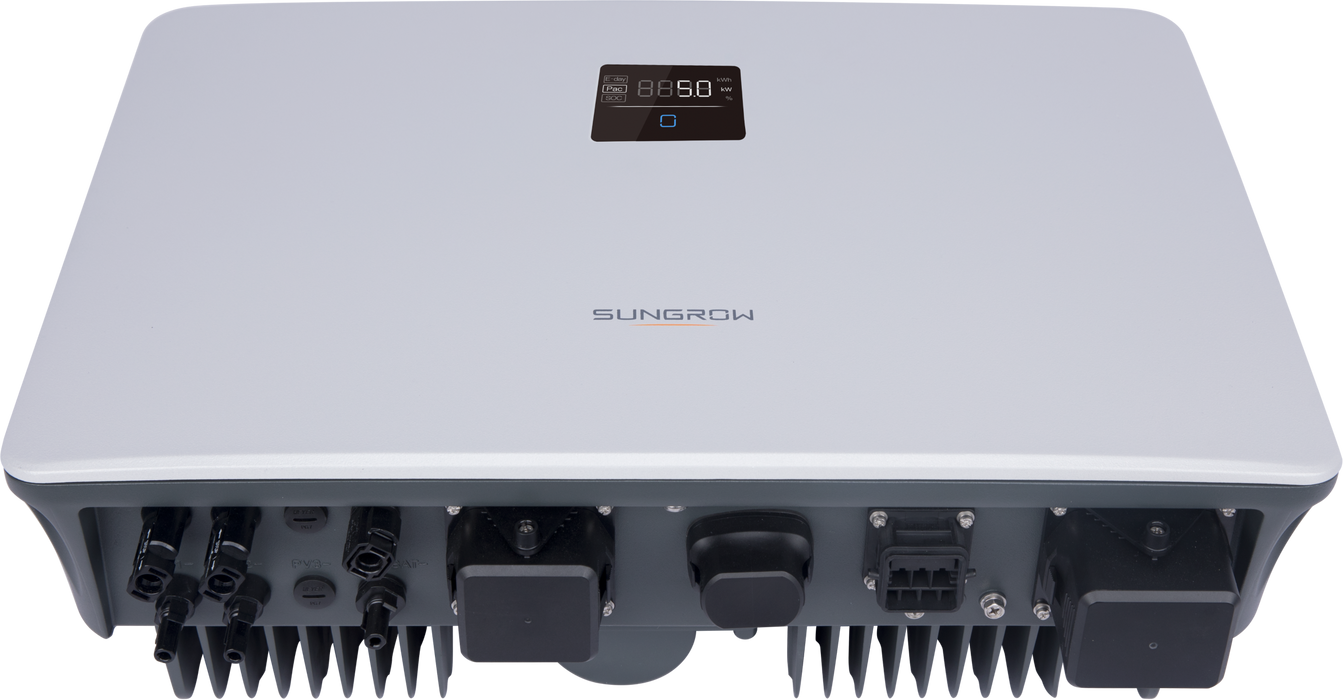

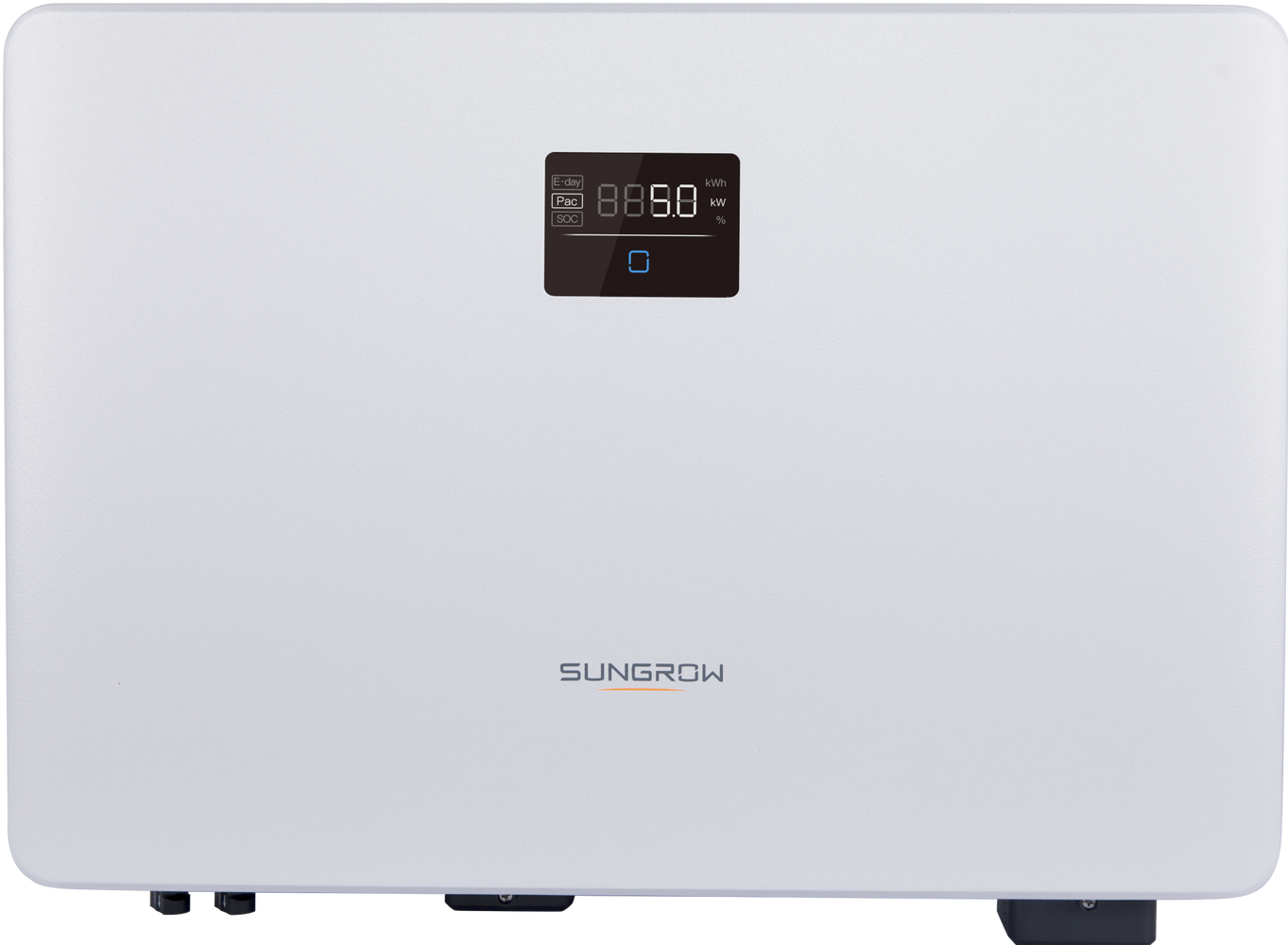

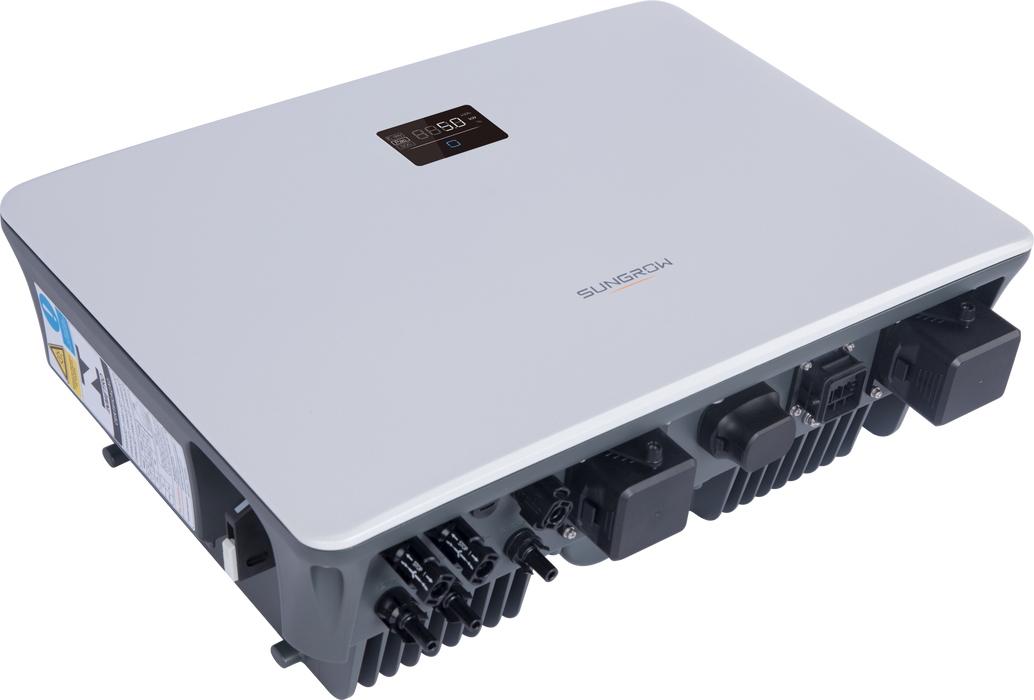

SUNGROW - SINGLE-PHASE HV HYBRID INVERTER - 5KW
SKU SH5.0RS-ADA
Call for availability
- Description
- Key Features
- Technical Specifications
The Sungrow SH5.0RS-ADA is a 5 kW single-phase hybrid inverter for residential solar and battery storage systems. It combines PV generation, battery control and backup capability in a single inverter and is suitable for both new installations and retrofit applications.
The SH5.0RS-ADA supports high-voltage battery integration, fast battery charging and discharging, and backup operation during a grid outage. System monitoring is available through Sungrow iSolarCloud.
Included in box: Plastic plate + DTSU666-20 (with CT) + WiNet-S
- 5 kW single-phase hybrid inverter with battery integration
- Two MPPTs for flexible PV array design
- 80–460 V battery operating range
- Up to 30 A charge and discharge current
- Backup power capability during a grid outage
- Type II DC and AC surge protection
- Ethernet, WLAN and RS485 communications
- iSolarCloud monitoring via app and web
- IP65 protection rating
| Specification | Value |
|---|---|
| Model | SH5.0RS-ADA |
| Rated AC Output Power | 5,000 W |
| Max. AC Output Apparent Power | 5,000 VA |
| Phase Configuration | Single-phase |
| Max. DC Input Voltage | 600 V |
| MPPT Operating Voltage Range | 40–560 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 32 A (16 A / 16 A) |
| Max. DC Short-Circuit Current | 40 A (20 A / 20 A) |
| Battery Type | Li-ion |
| Battery Voltage Range | 80–460 V |
| Max. Charge / Discharge Current | 30 A / 30 A |
| Communication | Ethernet / WLAN / RS485 / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109-1/2 |
