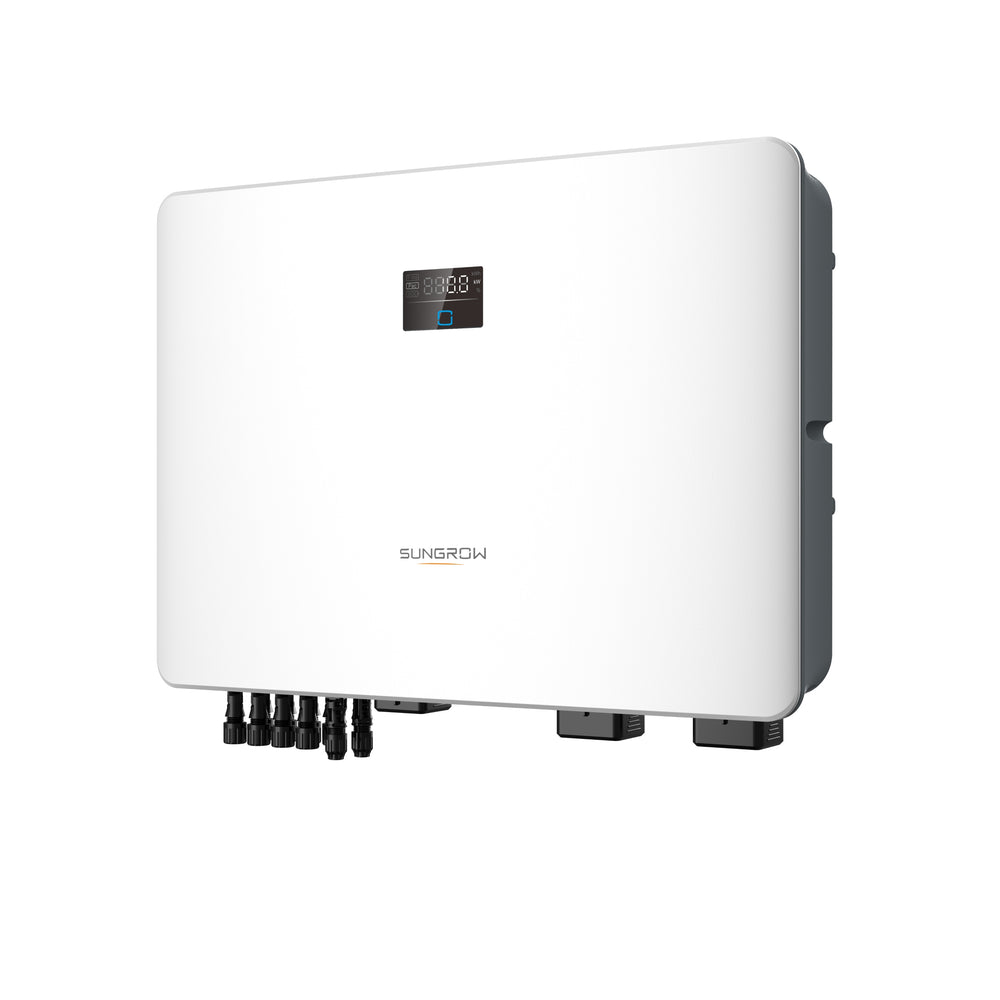

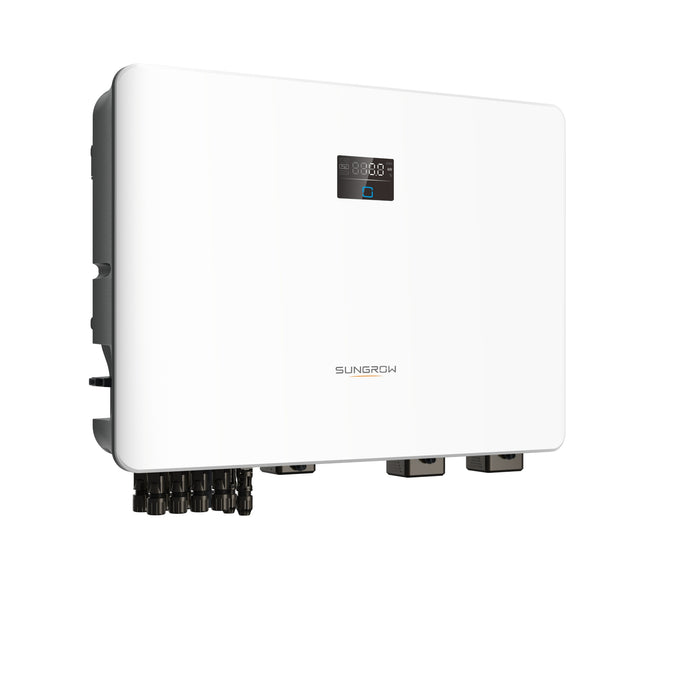

SUNGROW - SINGLE-PHASE HV HYBRID INVERTER - 8KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH8.0RS is a single-phase hybrid inverter designed to combine solar generation, battery storage, and backup power in one compact solution. Ideal for both new installations and retrofit projects, it enables seamless transition to backup mode during outages while supporting fast charging and discharging. With advanced energy management, integrated safety protection, and installer-friendly design, the SH8.0RS delivers reliable performance and increased energy independence.
-
8.0 kW single-phase hybrid inverter with battery integration
-
Seamless transition to backup mode for power outage protection
-
Supports fast charging and discharging to maximise self-consumption
-
Wide battery voltage range for flexible storage compatibility
-
Built-in energy management system (EMS) with advanced customisation
-
Integrated Type II DC & AC surge protection
-
Plug-and-play installation for faster commissioning
-
Real-time monitoring via iSolarCloud on app and web
| Specification | Value |
|---|---|
| Model | SH8.0RS |
| Rated AC Output Power | 8,000 W |
| Max. AC Output Apparent Power | 8,000 VA |
| Phase Configuration | Single-phase |
| Max. DC Input Voltage | 600 V |
| MPPT Operating Voltage Range | 40 – 560 V DC |
| Number of MPPTs | 4 |
| Max. PV Input Current | 64 A (16 A × 4) |
| Max. DC Short-Circuit Current | 80 A (20 A × 4) |
| Battery Type | Li-ion |
| Battery Voltage Range | 80 – 460 V |
| Max. Charge / Discharge Current | 50 A / 50 A |
| Backup Switch Time | < 10 ms |
| Communication | RS485 / WLAN / Ethernet / CAN / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 605 × 435 × 181 mm |
| Weight | 29 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109 |
