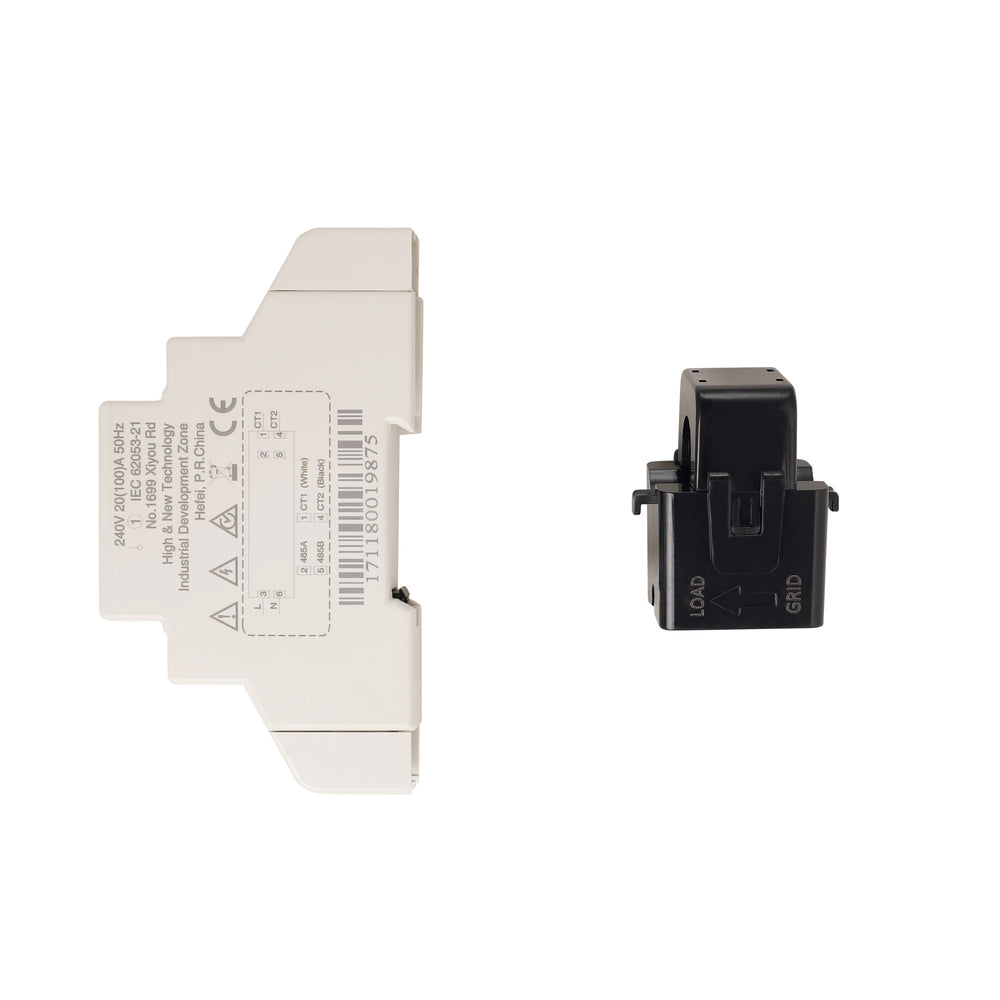

SUNGROW - SINGLE-PHASE SMART ENERGY METER
- Description
- Key Features
- Technical Specifications
The Sungrow S100 is a compact single-phase smart energy meter designed for accurate monitoring of electrical consumption in residential solar systems. Engineered for seamless integration with Sungrow inverters, it provides reliable real-time energy data to support system monitoring and energy management. With DIN-rail mounting, low power consumption, and RS485 communication, the S100 offers a simple and dependable metering solution for single-phase installations.
-
Single-phase smart energy meter for residential solar applications
-
Accurate energy measurement (Class 1) for reliable monitoring
-
RS485 communication for inverter and monitoring system integration
-
Compact DIN-rail design for easy switchboard installation
-
Low power consumption for efficient operation
-
100 A current capacity suitable for typical residential loads
-
Designed for monitoring and control applications (non-billing use)
| Specification | Value |
|---|---|
| Product Type | Single-phase Smart Energy Meter |
| Model | S100 |
| Nominal Voltage | 240 Vac |
| Input Voltage Range | 180 – 286 Vac |
| Max. Operating Current | 100 A |
| Grid Frequency | 50 Hz |
| Measurement Accuracy | Class 1 |
| Power Consumption | < 2 W (10 VA) |
| Communication Interface | RS485 |
| Protection Rating | IP20 |
| Operating Temperature Range | −25 °C to +75 °C |
| Relative Humidity | 0 – 95% |
| Dimensions (W × H × D) | 18 × 117 × 65 mm |
| Weight | 0.2 kg |
| Installation Method | 35 mm DIN rail |
