SUNGROW - WIRELESS COMMUNICATION MODULE
- Description
- Key Features
- Technical Specifications

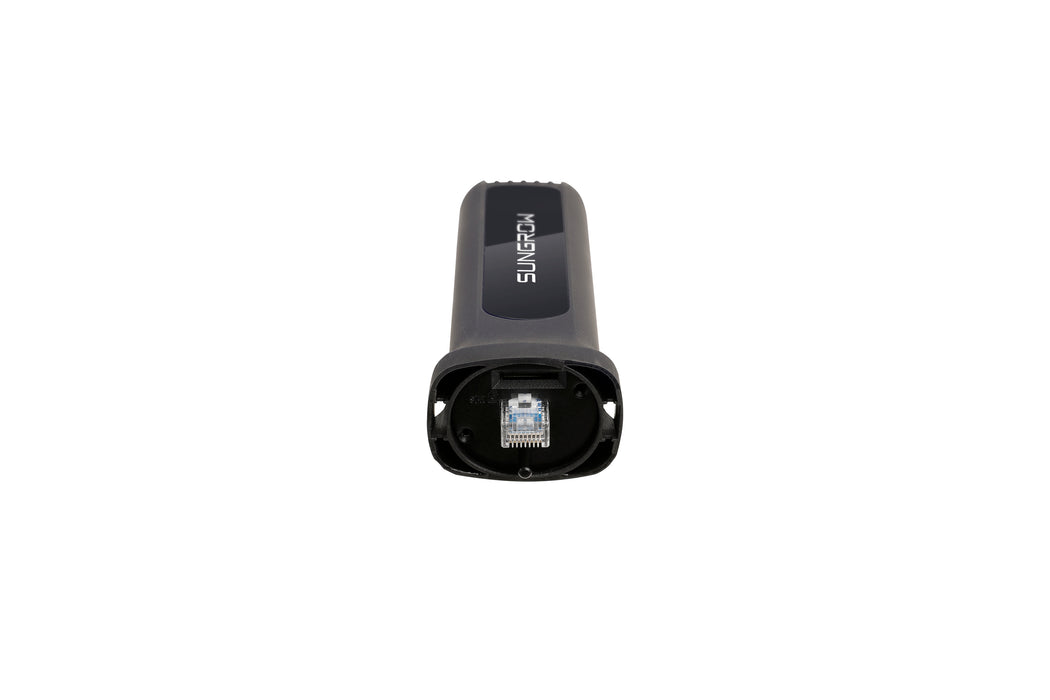

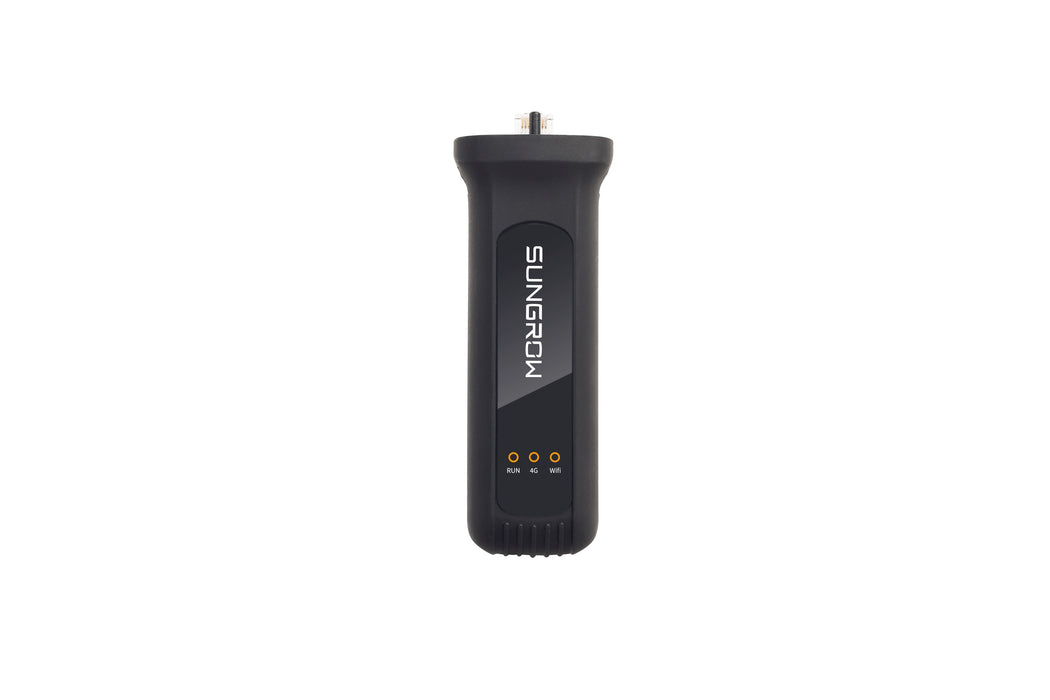

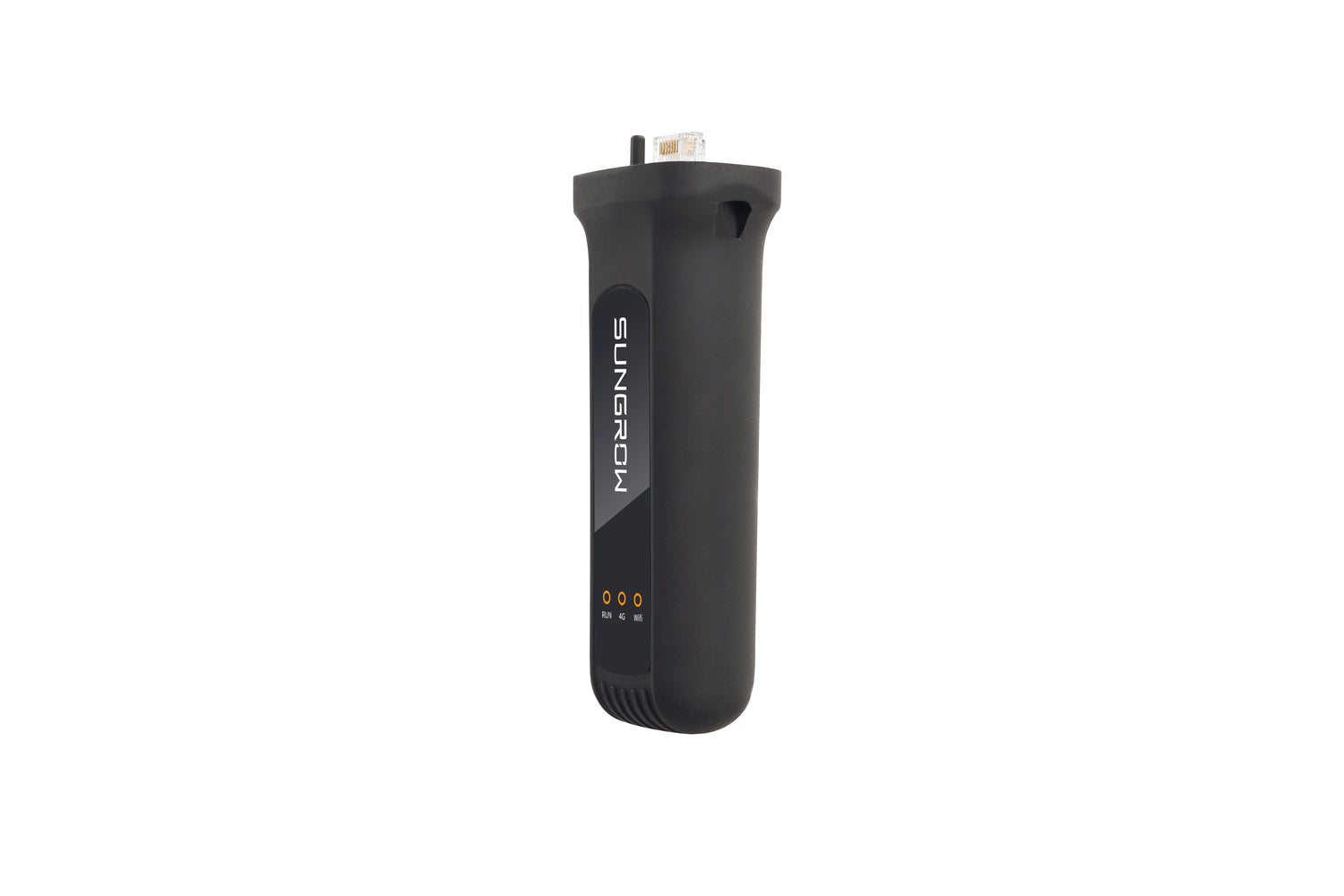

The Sungrow EyeM4 is a compact wireless communication module designed to enable reliable monitoring, configuration, and remote maintenance of Sungrow inverters. With plug-and-play installation and a built-in web server, it allows quick access to system data via browser on a PC or smartphone. Supporting multiple inverters from a single device, EyeM4 simplifies commissioning and ongoing system management while reducing service time and operational costs.
-
Wireless communication module for Sungrow inverters
-
Manages up to 10 inverters with a single device
-
One-click access to iSolarCloud for monitoring and management
-
Built-in web server for configuration via browser (no app required)
-
Plug and play installation for fast commissioning
-
Supports local and remote parameter setting
-
Enables remote firmware updates and maintenance
-
IP66-rated enclosure for outdoor installation
| Specification | Value |
|---|---|
| Product Type | Wireless Communication Module |
| Model | EyeM4C |
| Communication | WLAN |
| Wireless Standard | IEEE 802.11 b/g/n/ac |
| WLAN Frequency | 2.4 GHz / 5 GHz |
| Channel Bandwidth | HT20 / 40 / 80 MHz |
| Max. Number of Devices | Up to 10 inverters |
| LED Indicators | 2 × LED |
| Power Supply | 5 V DC |
| Rated Current | 0.8 A |
| Power Consumption | < 4 W |
| Operating Temperature | −30 °C to +60 °C |
| Relative Humidity | ≤ 95% (non-condensing) |
| Max. Installation Altitude | ≤ 4000 m |
| Protection Rating | IP66 |
| Dimensions (W × H × D) | 48 × 130 × 36 mm |
| Mounting Method | Plug and play |
