Thermostat 0-40°C - Knob NLA
- Description
- Key Features
- Technical Specifications

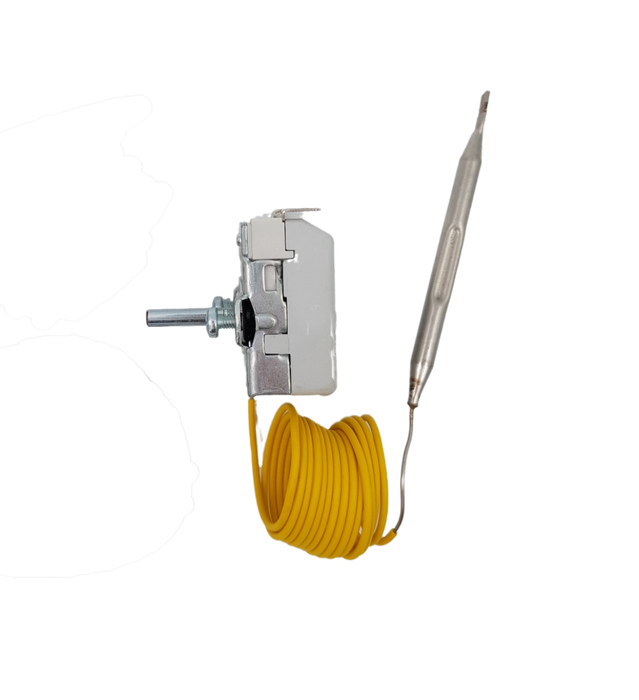

The RC26 Capillary Thermostat (0–40 °C, SPDT) is designed for precise low-temperature control in commercial cooking, refrigeration, and heating equipment. With a long 1430 mm capillary and 6 mm sensing bulb, it ensures accurate regulation across a wide range of applications. Built with a break-on-temperature-rise action, this thermostat is commonly used in Moffat appliances (equivalent part 013988)
-
Adjustable operating range: 0–40 °C, suited for refrigeration, bain-maries, and general heating/cooling control.
-
SPDT switching for versatile wiring options and control flexibility.
-
Break on temperature rise safety design.
-
1430 mm capillary length with 6 mm diameter bulb for accurate sensing.
-
Includes 2 × M4 mounting holes for secure installation.
-
Equivalent to Moffat part 013988, making it an easy replacement.
-
Control knob not available (NLA) — knob not supplied with unit.
| Specification | Value |
|---|---|
| SKU / Model | RC26 |
| Equivalent Part | Moffat 013988 |
| Temperature Range | 0–40 °C |
| Switch Type | SPST (single-pole, single-throw) |
| Function | Break on temperature rise |
| Capillary Length | 1430 mm |
| Bulb Diameter | 6 mm |
| Mounting Holes | 2 × M4 |
| Current / Voltage Rating | 16 A, 240 V AC (typical) |
| Control Knob | Not supplied (NLA) |
| Applications | Refrigeration, cooking, bain-marie, hot/cold water equipment |
