Tin Interface with Curved Base for Corrugated Roof (Z Module+Bolt+Universal Screw)
SKU ER-I-25
Call for availability
- Description
- Key Features
- Technical Specifications

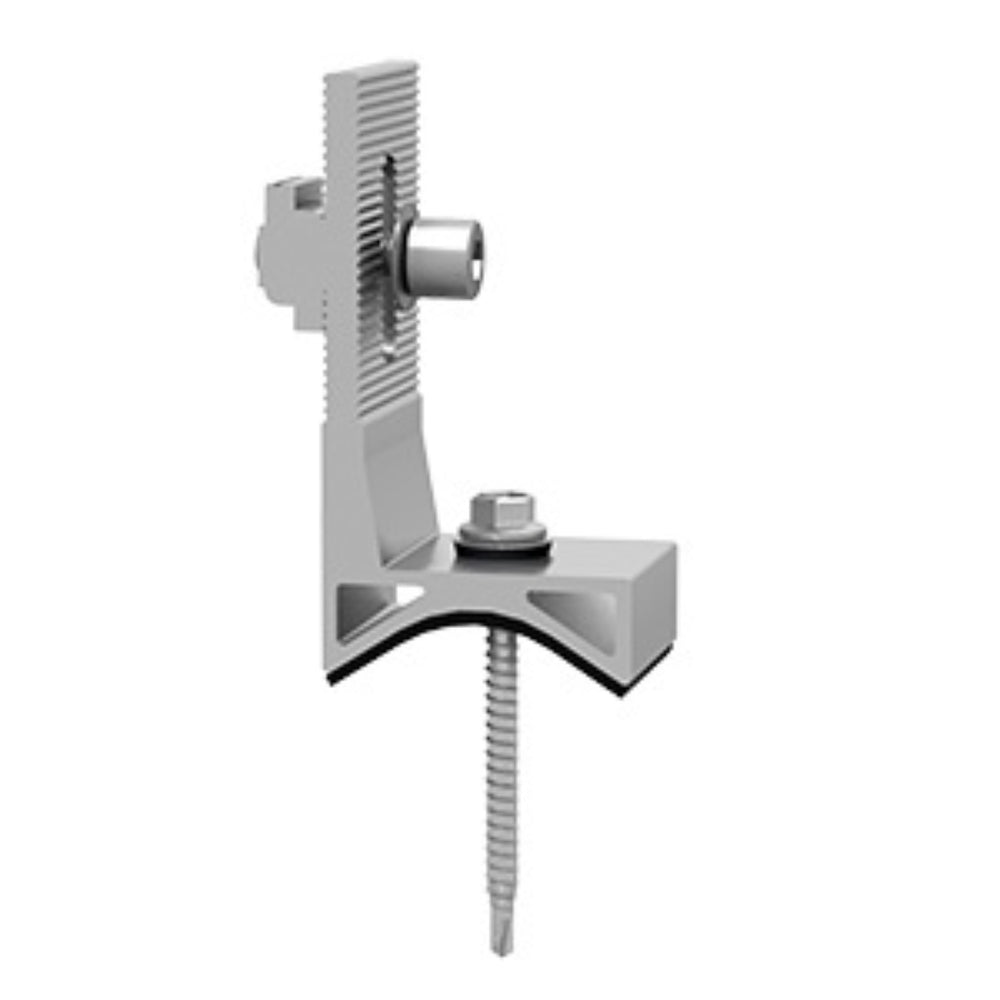

The Clenergy PV-ezRack ER-I-25 is a silver-anodised tin-roof interface with a curved base for fixing compatible SolarRoof systems to corrugated metal roofing.
- Curved base for compatible corrugated metal roofing
- Suitable for fixing to timber or metal purlins
- Supplied with Z-module, bolt and Buildex universal screw
- Pre-fitted 2 mm EPDM pad
- Silver-anodised aluminium structure
| Part number | ER-I-25 |
| Application | Corrugated metal roofing |
| Purlin compatibility | Timber or metal |
| Clearance | 89 to 104 mm |
| Dimensions | 40 × 50 × 95.8 mm |
| Screw | Buildex 14-11 × 70 hex-head Zips screw |
| Materials | AL6005-T5 aluminium; SUS304 bolts, washers and nuts |
| Finish | Silver anodised, minimum 10 μm |
| Weight | 0.139 kg |
| Packaging | 40 per pack; 4 packs (160 units) per carton |
| Standard | AS/NZS 1170.2:2011 |
