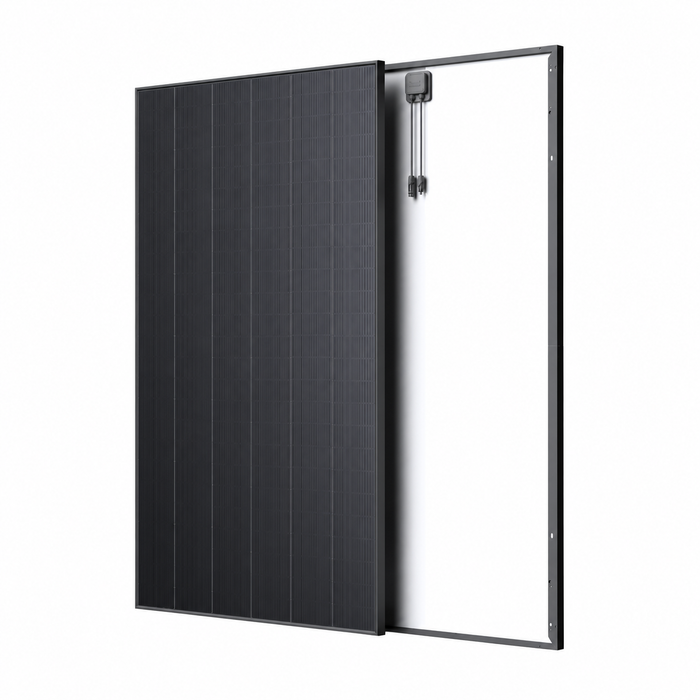

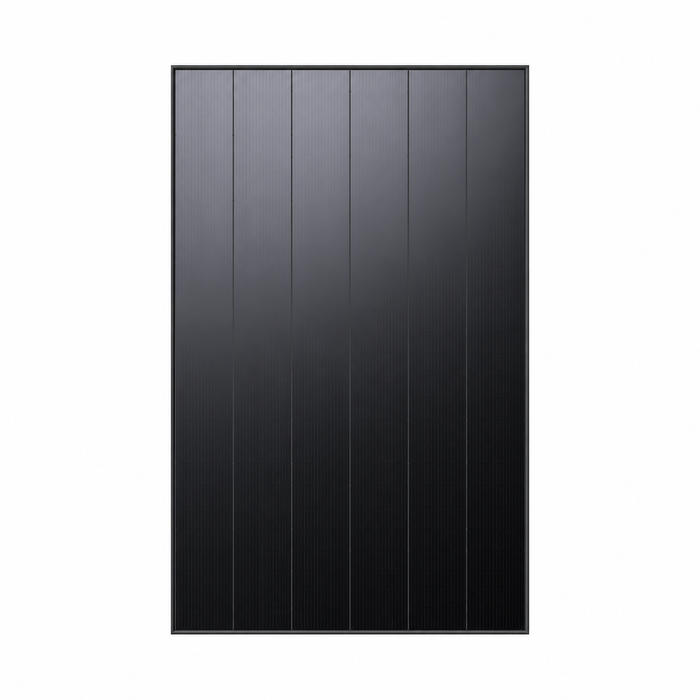

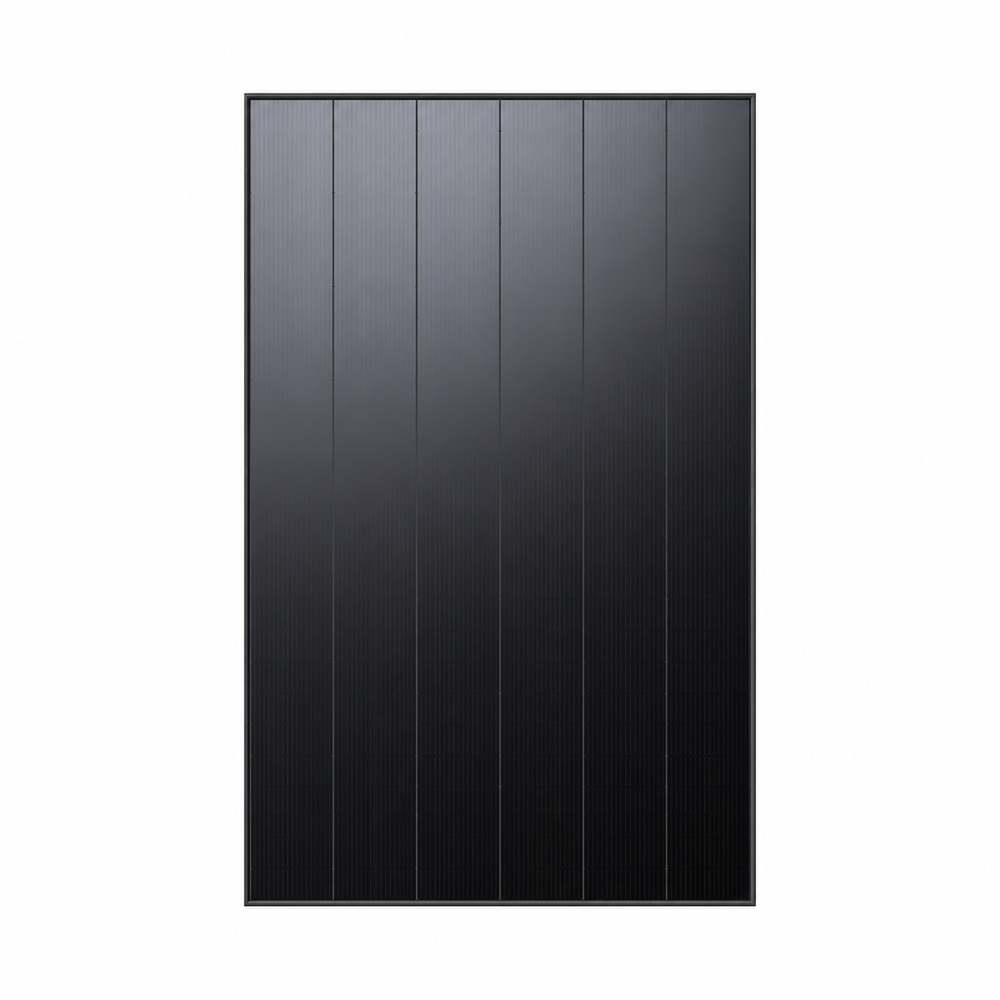

Vertex S+ 470w All Black Dual Glass N-Type Solar Module, Black Frame

The Trina Solar Vertex S+ G3 470W (TSM-470NEG9RP.25Z) is an all-black N-type i-TOPCon Ultra dual-glass solar module designed for residential rooftops. With 23.5% module efficiency and compact 1762 × 1134 mm dimensions, it provides 470 W of rated output where roof space is limited.

The module combines a black aluminium frame with high-density cell interconnection for a uniform appearance. Dual-glass construction, a −0.26%/°C power temperature coefficient and a 30-year power guarantee support long-term rooftop performance.

Modules per box: 36 pieces

• 470 W Rated Output - 23.5% module efficiency at standard test conditions.
• N-type i-TOPCon Ultra Technology - low-voltage, high-current architecture with performance optimised for rooftop applications.
• All-Black Appearance - black frame and high-density interconnection for a uniform finish.
• Dual-Glass Construction - 1.6 mm heat-strengthened glass on both sides, with an anti-reflective coating on the front.
• Temperature Performance - power temperature coefficient of −0.26%/°C.
• Compact Format - 1762 × 1134 × 30 mm dimensions and 21.1 kg weight.
• 30-Year Power Guarantee - 1% degradation in the first year and 0.35% annually thereafter, with 88.85% guaranteed output at year 30, subject to warranty terms.
